Sterilization is crucial in the medical products industry to ensure the safety and effectiveness of medical products. It is one of the most trusted methods for sterilizing medical devices, which uses Ethylene Oxide (EO/ETO) gas to eliminate harmful microorganisms. In this blog post, we’ll explore how ETO sterilization works, the process behind it, and the key equipment used in this method.
What is ETO Sterilization?
ETO sterilization refers to the process of using ethylene oxide (EO/ETO) gas to sterilize medical products. It’s a widely used method, especially for heat-sensitive items like surgical instruments, medical devices, and packaging materials. EO gas is effective at penetrating even the smallest crevices, ensuring that every part of the product is sterilized without causing any damage.
The ETO Sterilization Process
The process is divided into several stages to ensure thorough and safe sterilization. Each stage plays a critical role in achieving the desired outcome.
1. Preconditioning Phase
Before sterilization, the medical products undergo a preconditioning phase. This is where the products are prepared to absorb the EO gas efficiently. Preconditioning chambers/rooms maintain a controlled temperature and humidity level, which are crucial for the next steps in the process.
2. Sterilization Phase
In this phase, EO gas is introduced into the sterilizer. The temperature, pressure, and humidity are carefully controlled to ensure that the gas can effectively eliminate any microorganisms. This phase can take several hours, depending on the size of the load and the sterilization requirements.
3. Aeration Phase
After the sterilization process, the products move to the aeration chamber/room. Here, the products are exposed to controlled airflows that help remove any residual EO gas. This phase ensures that the products are safe for use and meet safety standards.
Key Parameters of ETO Sterilization
ETO Sterilization Temperature
The ideal temperature for ETO sterilization is usually between 37°C to 63°C (98.6°F to 145.4°F). Maintaining this temperature range is important to ensure that the EO gas can effectively penetrate and sterilize the product without damaging it.
Sterilization Time and Gas Concentration
Sterilization time varies based on the size and material of the products being sterilized. Typically, the process can take anywhere from 1 to 6 hours. EO gas concentration also needs to be carefully controlled. Too little gas may not be effective, while too much can be unsafe.
Humidity Control
Humidity levels during ETO sterilization play a significant role in the effectiveness of the process. A certain level of moisture helps EO gas to penetrate the product more efficiently, ensuring a successful sterilization cycle.
Supporting Machines for ETO Sterilization
Supporting machines play an important role in the ETO sterilization process. These machines ensure that every step is carried out safely and effectively. Here are some examples for a preliminary understanding.
Preconditioning Chamber/room:
Prepares products by adjusting temperature and humidity levels.
Nitrogen Generator System:
Maintains the right oxygen level during sterilization, preventing any reactions that could affect the process.

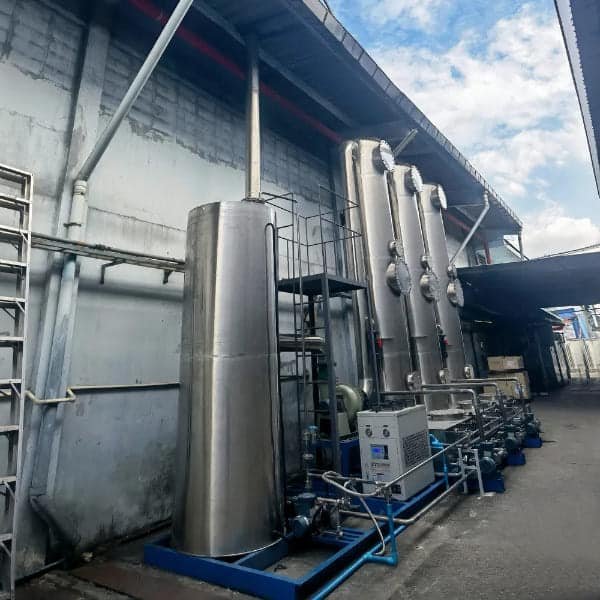

Scrubber System:
Treat any residual EO gas with the scrubber system, ensuring it meets local emission requirements.
Automated Conveyor System:
Automates the movement of products through the various stages, improving efficiency and safety through various types of automated conveyor systems.
Advantages of ETO Sterilization for Medical Products
ETO sterilization offers numerous advantages for medical products, such as:
Heat Sensitivity:
It’s ideal for products that cannot withstand high temperatures.
Thorough Sterilization:
EO gas effectively sterilizes even complex, multi-part products.
No Impact on Packaging:
The sterilization process doesn’t affect product packaging, which helps maintain the integrity of the packaging and the product inside.
Conclusion
ETO sterilization is a proven and reliable method for ensuring the safety and sterility of medical products. From the preconditioning phase to the aeration phase, each step is designed to guarantee effective and safe sterilization. By utilizing EO gas sterilizers and various optional supporting equipment, manufacturers can ensure the highest standards of sterilization for medical devices.
If you’re looking for proper solutions for ETO sterilization design and establishment in your facilities, contact us today for more information!
