Hospital Desktop ETO Sterilizer
Fanyue ethylene oxide sterilizer is mainly through its non-specific alkylation with genetic materials such as protein and DNA/RNAin microorganisms, resulting in the denaturation of proteins and genetic materials, and finally the death of microorganisms due to blocked metabolism.
Appllcable Items:
Rigid endoscope,hose endoscope, ophthalmic lens, fiber optic cable,surgical instruments,metal, glass, silicagel, rubber, traditional Chinese medicine,western medicine,human plants, DNA,etc.
Application scenario:
Medical device manufacturers,disposable medical
supplies manufacturers, operating rooms,university
laboratories, disinfection supply centers,biotechnology
companies,etc.
Features of Our Sterilizer
Display screen
Micro computer control technology, LCD display
Automatic door lock system
Mechanical and electronic dual insurance,
simple operation, safe and reliable.
Record sterilization process
Configure a mini printer with optional USB interface to record the sterilization

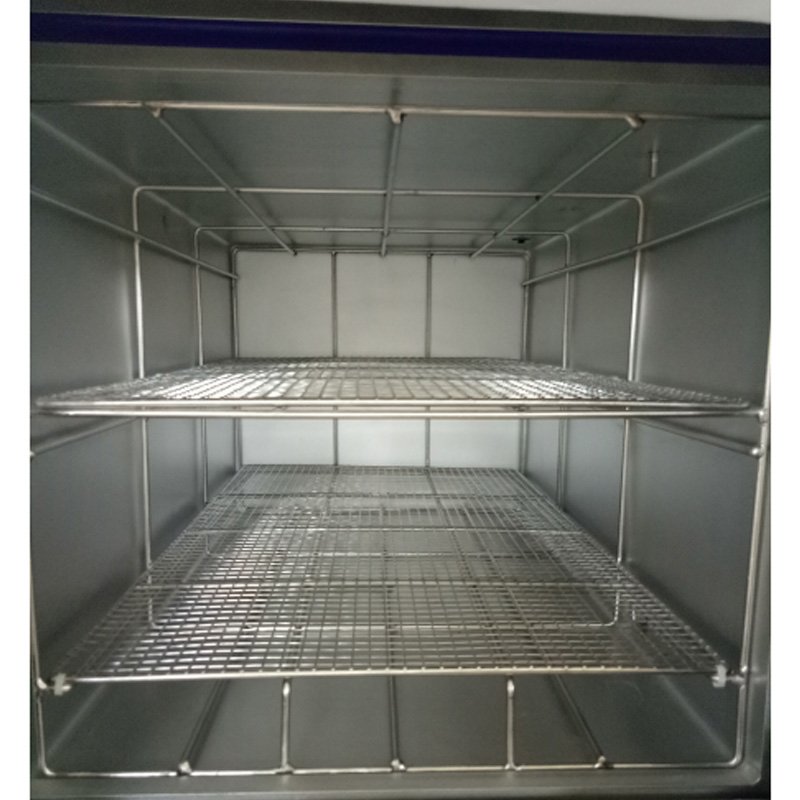

Circular sterilization chamber
Variable frequency temperature control: patented technology, fast heating, precise temperature control, and effective energy-saving.
Options of Door Configurations
Pneumatic Horizontal Sliding Door
- Ideal and commonly used for EO sterilizer all over the world.
- Open and close automatically controlled.
- Safe, reliable, smooth, and quiet operation.
- The most economical among the 3 door types.
Vertical Rising Door
- Open and close automatically controlled.
- Suitable for conditions of space limited on the left & right.
- With higher room ceiling height required than the other 2 door types.
- Safe, reliable, smooth, and quiet operation.

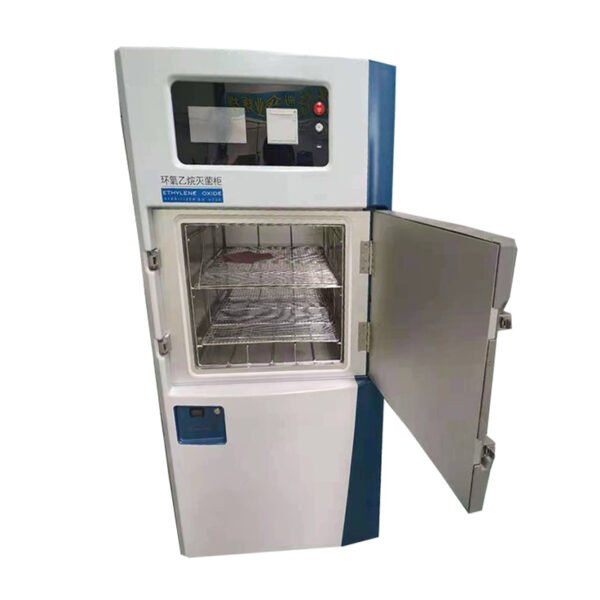

Pneumatic Swing Door
- Door open & close semi-automatic controlled:
- lock & unlock automatically, but with operator required to open and close.
- Suitable for conditions of space limited on the left & right.
- Safe, reliable, smooth, and quiet operation.
Primary Technical Parameters & Specifications
- Ethylene oxide gas under a certain humidity pressure to achieve the effect of sterilization. Ethylene oxide gas directly destroys microbial proteins,prevents their metabolism, and can kill stubborn bacilli.
- Uses are mainly used for all kinds of endoscopes,cotton spinning,silica gel,rubber,catheter wires and various medical consumables.
- They will not corrode or damage the equipment.
| Model/Size | Inner Dimensions L x W x H (mm) | Outer Dimensions L x W x H (mm) | Volume (L) | Power (kVA) | Weight (kgs) |
|---|---|---|---|---|---|
|
HSX-D40 |
246×450 |
L730 x W510 x H410 |
21L |
3.3kVA |
45kgs |
|
HSX-D80 |
L585 x W275 H422 |
L795 x W615 x H1140 |
67L |
2.6kVA |
148kgs |
|
HSX-D120 |
L585 x W375 x H472 |
L795 x W615 x H1140 |
103L |
3.0kVA |
177kgs |
|
HSX-D220 |
L705 x W505 x H552 |
L968 x W800 x H1240 |
196L |
3.3kVA |
243kgs |
|
HSX-D330 |
L760 x W545 x H712 |
L968 x W800 x H1400 |
294L |
3.6kVA |
295kgs |
|
HSX-XD120 |
L700 x W450 x H400 |
L976 x W790 x H1715 |
126L |
3.0kVA |
175kgs |
|
HSX-XD220 |
L820 x W510 x H460 |
L976 x W790 x H1715 |
192L |
3.6kVA |
220kgs |
|
Remark: N/A |
|||||
To learn more about how our sterilizer can improve your manufacturing process.
