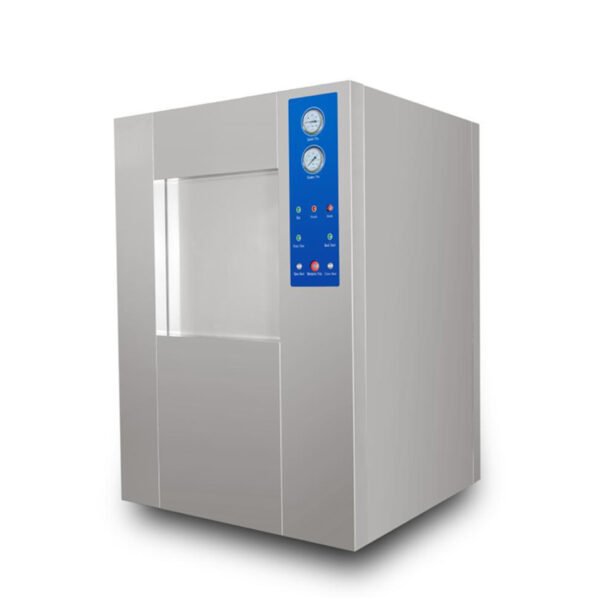

Pulsating Vacuum Pressure Steam Sterilizer
By utilizing the physical properties of saturated steam releasing a large amount of latent heat during condensation, the item to be sterilized is kept in a high temperature and humid state, and then insulated to achieve the purpose of sterilization.
Utilizing the strong penetration power of high-temperature saturated steam, pulsating vacuum sterilizers are mainly used for steam sterilization of hollow items and utensils. The sealed door is equipped with electrical and mechanical pressure safety interlock devices. When there is pressure in the sterilization room, the sealed door cannot be opened to ensure the safety of equipment and operators.
Features of Our Sterilizer
Display screen
Micro computer control technology,LCD display
Automatic door lock system
Mechanical and electronic dual insurance,
simple operation, safe and reliable.
Record sterilization process
Configure a mini printer with optional USB interface to record the sterilization
Circular sterilization chamber
Variable frequency temperature control: patented technology, fast heating, precise temperature control, and effective energy-saving.
Options of Door Configurations
Pneumatic Horizontal Sliding Door
- Ideal and commonly used for EO sterilizer all over the world.
- Open and close automatically controlled.
- Safe, reliable, smooth, and quiet operation.
- The most economical among the 3 door types.
Vertical Rising Door
- Open and close automatically controlled.
- Suitable for conditions of space limited on the left & right.
- With higher room ceiling height required than the other 2 door types.
- Safe, reliable, smooth, and quiet operation.
Pneumatic Swing Door
- Doors open & close semi-automatic controlled:
- lock & unlock automatically, but with operator required to open and close.
- Suitable for conditions of space limited on the left & right.
- Safe, reliable, smooth, and quiet operation.
Primary Technical Parameters & Specifications
- Pulsating vacuum
Equipped with three pulsating vacuums, the vacuum degree can reach -90Ka, ensuring efficient removal of air in the internal gaps of Class A cavity instruments (such as mobile phones and endoscopes)
- Strong drying
Equipped with powerful and intelligent pulsating deep vacuum drying function, the residual humidity of the instrument after drying does not exceed 0.2%.
| Model/Size | Inner Dimensions L x W x H (mm) | Outer Dimensions L x W x H (mm) | Volume (L) | Power (kVA) | Weight (kgs) |
|---|---|---|---|---|---|
|
HSX-PV100 |
420×700 |
L1150 x W770 x H1520 |
100L |
15kVA |
310kgs |
|
HSX-PV200 |
500×1000 |
L1360 x W810 x H1580 |
200L |
18kVA |
360kgs |
|
HSX-PV600 |
L610 x W910 x H1150 |
L1440 x W1950 x H1620 |
638L |
25+48kVA |
1250kgs |
|
HSX-PV800 |
L610 x W910 x H1500 |
L1440 x W1950 x H2050 |
832L |
2.7+54kVA |
1400kgs |
|
HSX-PV1000 |
L610 x W910 x H1820 |
L1440 x W1950 x H2100 |
1001L |
3+54kVA |
1550kgs |
|
HSX-PV1200 |
L680 x W1180 x H1500 |
L1480 x W1980 x H2100 |
1203L |
3.5+54kVA |
1950kgs |
|
Remark: N/A |
|||||
To learn more about how our sterilizer can improve your manufacturing process.
