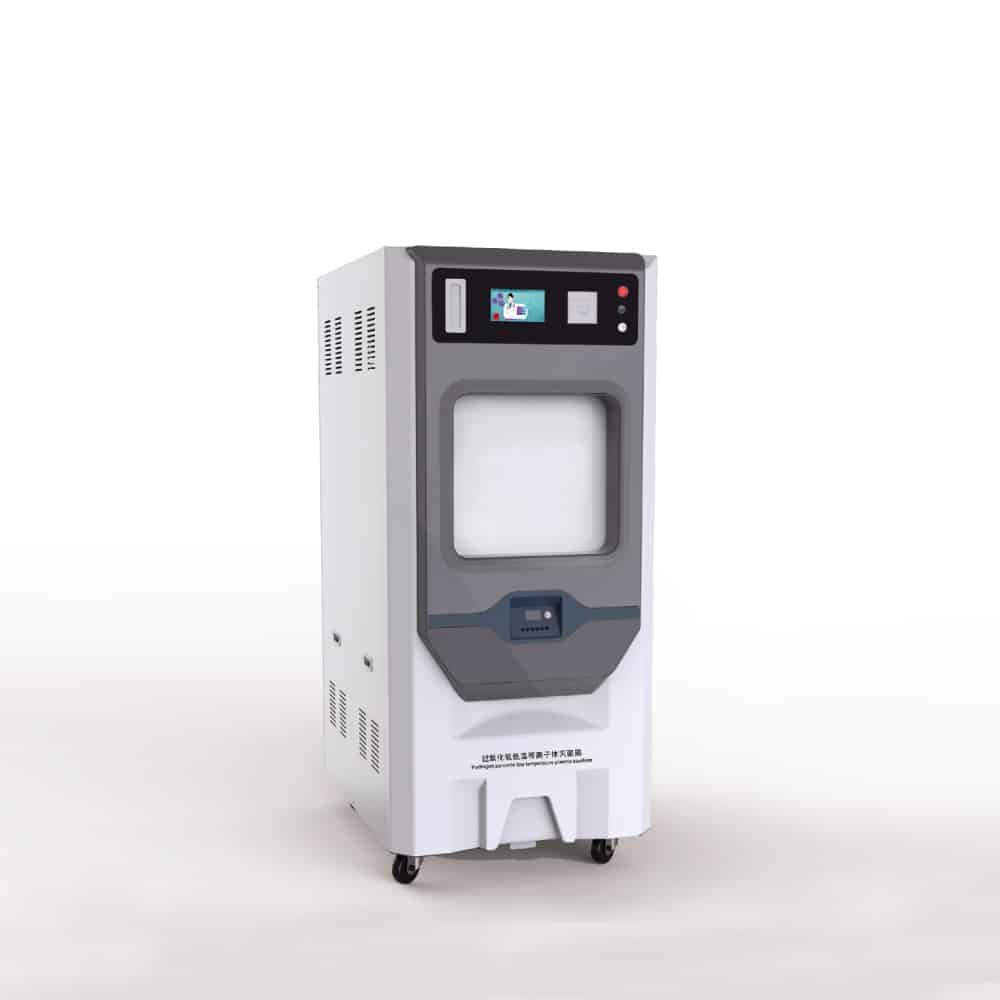

Hydrogen Peroxide Low Temperature Plasma Sterilizer
This low-temperature plasma sterilizer generates plasma in the sterilization chamber under low temperature and vacuum through the action of high-frequency electric field to chemically react with proteins and nucleic acids in microorganisms, and then uses H2O2 as the medium to destroy microorganisms and disturb the survival function of microorganisms, so as to finally achieve the sterilization effect.
Applicable articles:
Rigid endoscope; soft endoscope; probe; ophthalmic
lens; fiber opticable; intracranial sensor; cold therapy probe; surgical excision device; electrocautery equipment; defibrillation motor; metal; glass; silicone; rubber etc.
Features of Our Sterilizer
Environmentally friendly
The sterilizing agent is hydrogen peroxide solution, which leaves no toxic residue. There is no need for drainage or ventilation. It does no harm to the operator's body and causes no pollution to the environment.
Sterilization efficiency
The rectangular sterilization chamber design allows for the loading of more instruments at one time, which is more convenient and increases the usable space of the sterilization chamber.
Low-temperature sterilization
The sterilization temperature is 50℃±5℃. The low-temperature sterilization technology causes no damage to the sterilized items and instruments.
Sterilization stability
The sterilization chamber is made of aluminum, which has the properties of anti-corrosion and fast heat conduction, making the temperature in the sterilization chamber more balanced. The storage system ensures the stable and effective concentration of hydrogen peroxide and prevents it from volatilizing.
Options of Door Configurations
Pneumatic Horizontal Sliding Door
- Ideal and commonly used for EO sterilizer all over the world.
- Open and close automatically controlled.
- Safe, reliable, smooth, and quiet operation.
- The most economical among the 3 door types.
Vertical Rising Door
- Open and close automatically controlled.
- Suitable for conditions of space limited on the left & right.
- With higher room ceiling height required than the other 2 door types.
- Safe, reliable, smooth, and quiet operation.
Pneumatic Swing Door
- Doors open & close semi-automatic controlled:
- lock & unlock automatically, but with operator required to open and close.
- Suitable for conditions of space limited on the left & right.
- Safe, reliable, smooth, and quiet operation.
Primary Technical Parameters & Specifications
- Adopt a 13-inch high-precision industrial high-definition touch screen, featuring high-definition picture quality, enhanced light transmittance to prevent diffusion and scattering, clear and intelligent images, noise reduction, no dragging on the picture, more detailed display and reduced visual fatigue.
- Electric lift door, equipped with anti-pinch hand switch, safe and reliable.
- It features two scanning functions: barcode and QR code. The processed medical equipment and materials can be scanned and recorded, and the relevant information can be synchronized to the sterilization record information for convenient traceability and query.
- Adopt a 50KHZ dual RF power supply design, which enhances the sterilization and desorption effects. Moreover, it features a fully shielded design scheme to eliminate the risk of electromagnetic radiation and ensure personal safety.
| Model/Size | Inner Dimensions L x W x H (mm) | Outer Dimensions L x W x H (mm) | Volume (L) | Power (kVA) | Weight (kgs) |
|---|---|---|---|---|---|
|
HSX-WD100 |
L700 x W430 x H360 |
L1067 x W790 x H1782 |
100L |
3.4kVA |
301kgs |
|
HSX-WD135 |
L750 x W450 x H400 |
L1067 x W790 x H1782 |
135L |
3.5kVA |
308kgs |
|
HSX-WD190 |
L820 x W510 x H460 |
L1067 x W790 x H1782 |
190L |
4.3kVA |
341kgs |
|
Remark: N/A |
|||||
To learn more about how our sterilizer can improve your manufacturing process.
